Learn how to set up Multicast DNS (mDNS) on your ESP32 programmed with the Arduino IDE. mDNS lets you refer to your ESP32 using a user-friendly name instead of its IP address. For instance, instead of having to type the ESP32 IP address to access a web server in your browser on your local network, you can simply use something like http://esp32.local.
What is mDNS?
mDNS, or Multicast DNS, allows you to assign specific names to devices on your local network, each associated with its specific IP address. This way, you can refer to them via that name instead of the IP address.
mDNS for the ESP32
This way, instead of having to remember the specific IP addresses of several of your ESP32 boards on your network, you can simply give a name to each of them, for example esp32-room, esp32-lights. Then, you can access them on your network using http://esp32-room.local, for example, instead of having to memorize or write down the specific IP address for each board.
How to Set Up mDNS on an ESP32 (Arduino IDE)?
Setting up mDNS on an ESP32 programmed with Arduino IDE is quite simple and only requires you to add a few lines to your existing code.
1) First, include the ESPmDNS library.
#include <ESPmDNS.h>2) In the setup() of your code, after connecting to your network, set mDNS using the following lines. Pass the hostname you want to the begin() function—the one that will be used in the URL when you access an ESP32 web server.
if (!MDNS.begin(mdnsName)) {
Serial.println("Error setting up MDNS responder!");
while(1) {
delay(1000);
}
}3) Finally, advertise your ESP32’s HTTP web service (on TCP port 80).
MDNS.addService("_http", "_tcp", 80);ESP32 Web Server with mDNS
To show you how to implement mDNS, we’ll show you a basic “Hello World” web server with this feature implemented.
To access this web server on your browser, instead of having to type your ESP32 IP address, you can type http://myesp32.local
Here’s the example code.
/*
Rui Santos & Sara Santos - Random Nerd Tutorials
Complete project details at https://RandomNerdTutorials.com/esp32-mdns-arduino/
Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files.
The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.
*/
#include <WiFi.h>
#include <WebServer.h>
#include <ESPmDNS.h>
// Replace with your network credentials
const char* ssid = "REPLACE_WITH_YOUR_SSID";
const char* password = "REPLACE_WITH_YOUR_PASSWORD";
// mDNS name (customize this as needed)
const char* mdnsName = "myesp32";
// Create a web server object
WebServer server(80);
// Function to handle the root URL
void handleRoot() {
String html = "<!DOCTYPE html><html><head><meta name=\"viewport\" content=\"width=device-width, initial-scale=1\">";
html += "<link rel=\"icon\" href=\"data:,\">";
html += "<style>";
html += "body { font-family: -apple-system, BlinkMacSystemFont, 'Segoe UI', Roboto, sans-serif; background: white; color: #333; margin: 20px; }";
html += "h1 { color: #4a5568; font-weight: 300; }";
html += "</style></head>";
html += "<body>";
html += "<h1>Hello World</h1>";
html += "<p>ESP32 mDNS Demo.</p>";
html += "</body></html>";
server.send(200, "text/html", html);
}
void setup() {
Serial.begin(115200);
// Connect to Wi-Fi network
Serial.print("Connecting to ");
Serial.println(ssid);
WiFi.begin(ssid, password);
while (WiFi.status() != WL_CONNECTED) {
delay(500);
Serial.print(".");
}
Serial.println("");
Serial.println("WiFi connected.");
Serial.println("IP address: ");
Serial.println(WiFi.localIP());
// Set mDNS
if (!MDNS.begin(mdnsName)) {
Serial.println("Error setting up MDNS responder!");
while(1) {
delay(1000);
}
}
// Add service to MDNS-SD
MDNS.addService("_http", "_tcp", 80);
Serial.println("mDNS responder started. Access your ESP32 at http://" + String(mdnsName) + ".local");
// Set up the web server to handle route
server.on("/", handleRoot);
// Start the web server
server.begin();
Serial.println("HTTP server started");
}
void loop() {
// Handle incoming client requests
server.handleClient();
}
How Does the Code Work?
To keep things simple, we’re creating the web server using the ESP32 core’s built-in WebServer library.
#include <WebServer.h>We already explained in great detail how to build simple web servers using that library in the following tutorial:
So, we’ll just explain the relevant parts of the code for this tutorial.
Including the mDNS Library
As we mentioned previously, you need to include the ESPmDNS library.
#include <ESPmDNS.h>Network Credentials
Insert your network credentials on the following lines so that the ESP32 can connect to your local network.
const char* ssid = "REPLACE_WITH_YOUR_SSID";
const char* password = "REPLACE_WITH_YOUR_PASSWORD";mDNS Hostname
Add your desired hostname. In our case, we’re calling it myesp32, but you can give a different name.
const char* mdnsName = "myesp32";Set Up mDNS
In the setup(), after initializing Wi-Fi and printing the board’s IP address…
// Connect to Wi-Fi network
Serial.print("Connecting to ");
Serial.println(ssid);
WiFi.begin(ssid, password);
while (WiFi.status() != WL_CONNECTED) {
delay(500);
Serial.print(".");
}
Serial.println("");
Serial.println("WiFi connected.");
Serial.println("IP address: ");
Serial.println(WiFi.localIP());…We set mDNS using the following lines of code:
// Set mDNS
if (!MDNS.begin(mdnsName)) {
Serial.println("Error setting up MDNS responder!");
while(1) {
delay(1000);
}
}
// Add service to MDNS-SD
MDNS.addService("_http", "_tcp", 80);
Serial.println("mDNS responder started. Access your ESP32 at http://" + String(mdnsName) + ".local");And that’s it. You can use this method for any of your IoT projects.
Demonstration

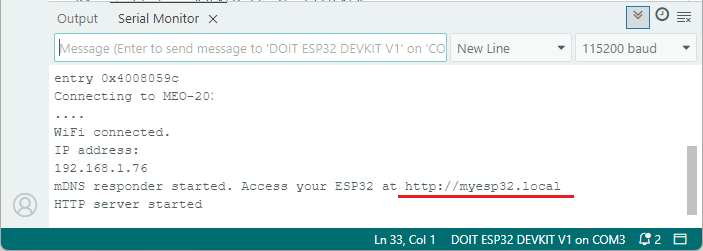

Upload the previous code to your ESP32 board. Then, open the Serial Monitor at a baud rate of 115200 and press the ESP32 RST button so that it starts running the code.
It will print the board IP address and the link to access the web server using the hostname you’ve given in the code. In my case, I’ll access the ESP32 web server at http://myesp32.local.
Open a browser on your local network, and type http://myesp32.local, or any other name you’ve given (you need to add the .local at the end), and you should get access to the web server.
This is just a simple web server for testing purposes, but this can be applied to any other web servers, web apps, and so on.
Multiple Devices with Same Hostname
When using the ESPmDNS library, if you give the same hostname as a device that already exists on the local network, the library will automatically handle that and add a suffix to the name. For example, if esp32.local already exists, it will rename it to esp32-2.local, and so on. The library does this in the background.
To know what the actual hostname given to the device is, we need to use more low-level functions like mdns_hostname_get() included in the mdns.h library from ESP-IDF.
The following code is similar to the previous example, but it uses the mdns_hostname_get() function to get the actual hostname given to the device. This is useful if you happen to mistakenly give the same hostname to multiple devices or if there is already another device with the same name on the network.
/*
Rui Santos & Sara Santos - Random Nerd Tutorials
Complete project details at https://RandomNerdTutorials.com/esp32-mdns-arduino/
Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files.
The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.
*/
#include <WiFi.h>
#include <WebServer.h>
#include <ESPmDNS.h>
#include <mdns.h> // For low-level mDNS functions from ESP-IDF
// Replace with your network credentials
const char* ssid = "REPLACE_WITH_YOUR_SSID";
const char* password = "REPLACE_WITH_YOUR_PASSWORD";
// mDNS name (customize this as needed)
const char* mdnsName = "myesp32";
// Create a web server object
WebServer server(80);
// Function to handle the root URL
void handleRoot() {
String html = "<!DOCTYPE html><html><head><meta name=\"viewport\" content=\"width=device-width, initial-scale=1\">";
html += "<link rel=\"icon\" href=\"data:,\">";
html += "<style>";
html += "body { font-family: -apple-system, BlinkMacSystemFont, 'Segoe UI', Roboto, sans-serif; background: white; color: #333; margin: 20px; }";
html += "h1 { color: #4a5568; font-weight: 300; }";
html += "</style></head>";
html += "<body>";
html += "<h1>Hello World</h1>";
html += "<p>ESP32 mDNS Demo.</p>";
html += "</body></html>";
server.send(200, "text/html", html);
}
void setup() {
Serial.begin(115200);
// Connect to Wi-Fi network
Serial.print("Connecting to ");
Serial.println(ssid);
WiFi.begin(ssid, password);
while (WiFi.status() != WL_CONNECTED) {
delay(500);
Serial.print(".");
}
Serial.println("");
Serial.println("WiFi connected.");
Serial.println("IP address: ");
Serial.println(WiFi.localIP());
// Set mDNS
if (!MDNS.begin(mdnsName)) {
Serial.println("Error setting up MDNS responder!");
while(1) {
delay(1000);
}
}
delay(5000);
// Add service to MDNS
MDNS.addService("_http", "_tcp", 80);
// Retrieve and print the actual (resolved) hostname - checking if there are any conflicts in the network
char actualHostname[MDNS_NAME_BUF_LEN]; // MDNS_NAME_BUF_LEN is 64 from mdns.h
esp_err_t err = mdns_hostname_get(actualHostname);
if (err == ESP_OK) {
String actualName = String(actualHostname);
Serial.println("mDNS responder started. Given name: " + String(mdnsName));
Serial.println("Current hostname: http://" + actualName + ".local");
if (actualName != mdnsName) {
Serial.println("Hostname renamed.");
}
} else {
Serial.println("Failed to retrieve current hostname (error: " + String(err) + ")");
}
// Set up the web server to handle route
server.on("/", handleRoot);
// Start the web server
server.begin();
Serial.println("HTTP server started");
}
void loop() {
// Handle incoming client requests
server.handleClient();
}
How Does the Code Work?
In this code, we include the mdns.h library from ESP-IDF.
#include <mdns.h> // For low-level mDNS functions from ESP-IDFAfter setting up mDNS on the ESP32, we use the mdns_hostname_get() function to get the actual hostname given to the device.
// Retrieve and print the actual (resolved) hostname - checking if there are any conflicts in the network
char actualHostname[MDNS_NAME_BUF_LEN]; // MDNS_NAME_BUF_LEN is 64 from mdns.h
esp_err_t err = mdns_hostname_get(actualHostname);
if (err == ESP_OK) {
String actualName = String(actualHostname);
Serial.println("mDNS responder started. Given name: " + String(mdnsName));
Serial.println("Current hostname: http://" + actualName + ".local");
if (actualName != mdnsName) {
Serial.println("Hostname renamed.");
}
} else {
Serial.println("Failed to retrieve current hostname (error: " + String(err) + ")");
}Testing the Code
To test this code, you need to keep the previous code running on another board. Then, upload this new code to a different board.

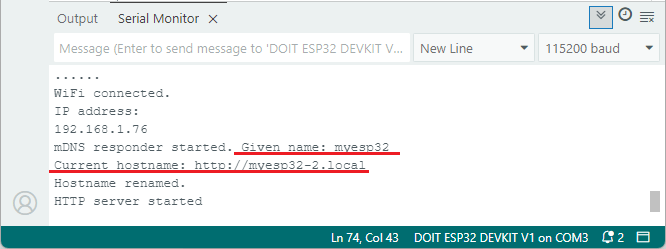

Since we’re trying to use the myesp32 hostname that was already taken by the previous device, the library will automatically change the hostname to myesp32-2.

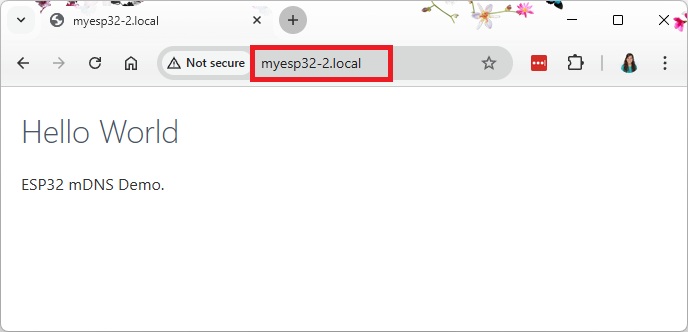

In the same way, you can access the web server on http://myesp32-2.local on your web browser.
Wrapping Up
In this tutorial, you learned how to use and set up mDNS on your ESP32 boards programmed with Arduino IDE. mDNS allows you to assign specific hostnames to your devices on your local network. This way, you can refer to them using the hostname, which is more user-friendly, rather than the IP address.
Using the mDNS.h library, it is quite easy to add this feature to your ESP32 web server projects.
We hope you’ve found this tutorial useful.
